Sunday, August 29, 2010

Align T-Rex 700E 3G wiring and electronics configuration.

T-Rex 700E 3G left side.
Wiring over view-Left side


3G devices & external BEC, battery for receiver.
Phoenix Castle ICE 80HV ESC

Wiring of receiver.
Wiring overview-right side

Secure the signal wire of the ESC by velcro.


Disconnect the wire for ESC setting.


Remove the wire easily, and will not be off postion
in flight.

Labels: , ,

Tuesday, March 23, 2010

Align T-Rex 700E test flight 3/21

Amazing!
http://www.youtube.com/watch?v=-c6xMk3TDgw

Align T-REX 550E



Coming soon. T-Rex 550E (550mm blades)

Saturday, January 16, 2010

Align T-Rex 700 Flybarless kits snap shots

T-Rex 700 FBL kit snap shots, in stock at rcheligears.


Friday, January 15, 2010

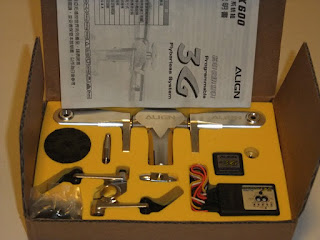

Snap shots of T-Rex 600 Flybarless kit. Available at rcheligears.com


Saturday, October 24, 2009

Remove the Futaba switch, wear Align 2 in 1 5.8V regulator, no more exeternal batter checker & glow plug igniter.

Thursday, May 7, 2009

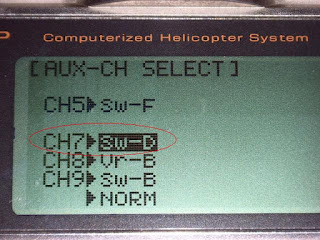

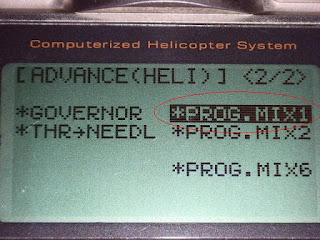

Align RCE-G600 Governor Quick Setup on Futaba FF9 (9C)

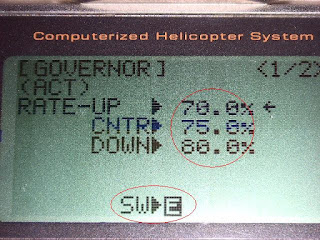

When the governor is on.

When the governonr is off.
